- 2.8 inch high contrast transmissive LED back lit display
- LED back lit solid state (contact-less) buttons
- Automatic back light brightness adjustment
- 2 all purpose analog inputs
- 2 digital high current outputs
- 2 auxiliary “control” inputs
- Extruded aluminum enclosure with all aluminum hardware for corrosion resistance
- 2 Line Level audio inputs – 1/- 1db 25 - 40khz
- 2 Line Level audio outputs – 1/- 1db 25 - 40khz
- 2 Peltor intercom inputs with high current audio outputs
- Real time clock backed up by a super capacitor
- 24 bit 96Khz audio and signal processing
- Industrial components for reliability in high and low temperatures
- Operates on 7 to 24 volts

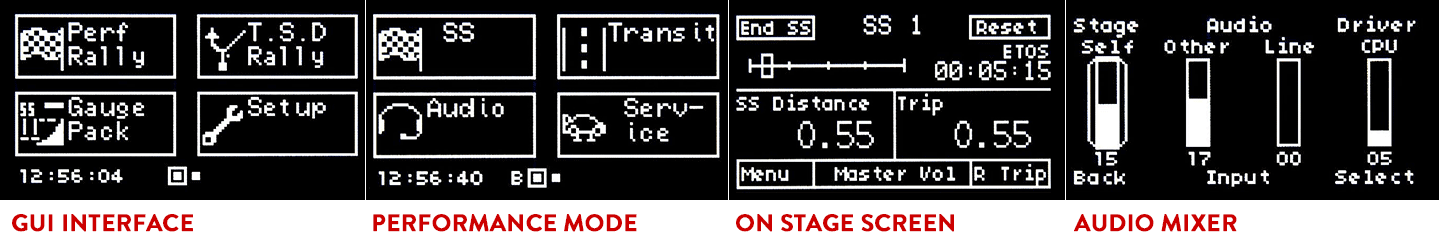

- Full graphical user interface
- Dedicated Performance Rally Mode
- Dedicated TSD mode
- Fully adjustable audio mixer with stage and transit presets
- Maintenance log
- Performance tests of 0-60 and ¼ mile times
- Fully mapped fuel gauge
- Persistent general odometer with 2 persistent trip odometers
- Oscilloscope display of analog inputs
- RPM monitor with settable alert for driver
- Battery voltage monitor
- Audible feedback of user interface for co-driver
- Innovative user interface with velocity sensitive knob
- Fully upgradable firmware

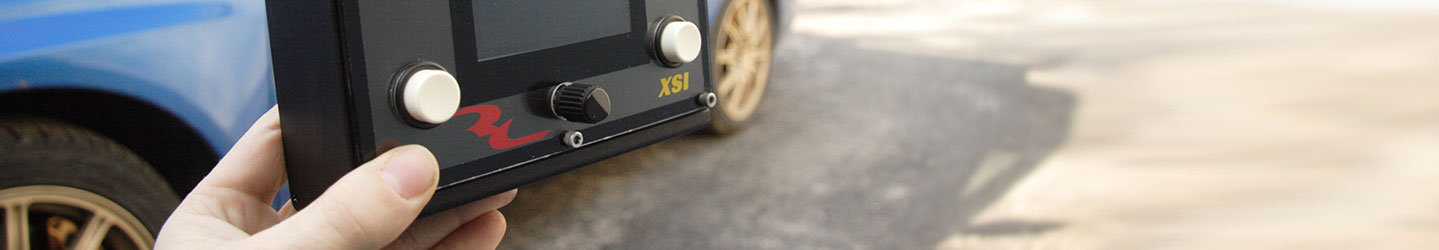

- 6.3 inches wide
- 4.92 inches high
- 2.03 inches deep + buttons and knob
